INNO INSTRUMENT FUSION SPLICING MACHINE VIEW 6C

149000 INR/Piece

Product Details:

X

Price And Quantity

  • 149000 INR/Piece
  • 1 Piece
  • 149000.00 - 154000.00 INR/Piece

Trade Information

  • Telegraphic Transfer (T/T), Cheque, Cash in Advance (CID)
  • 10 Piece Per Week
  • 4 Days
  • All India

Product Description

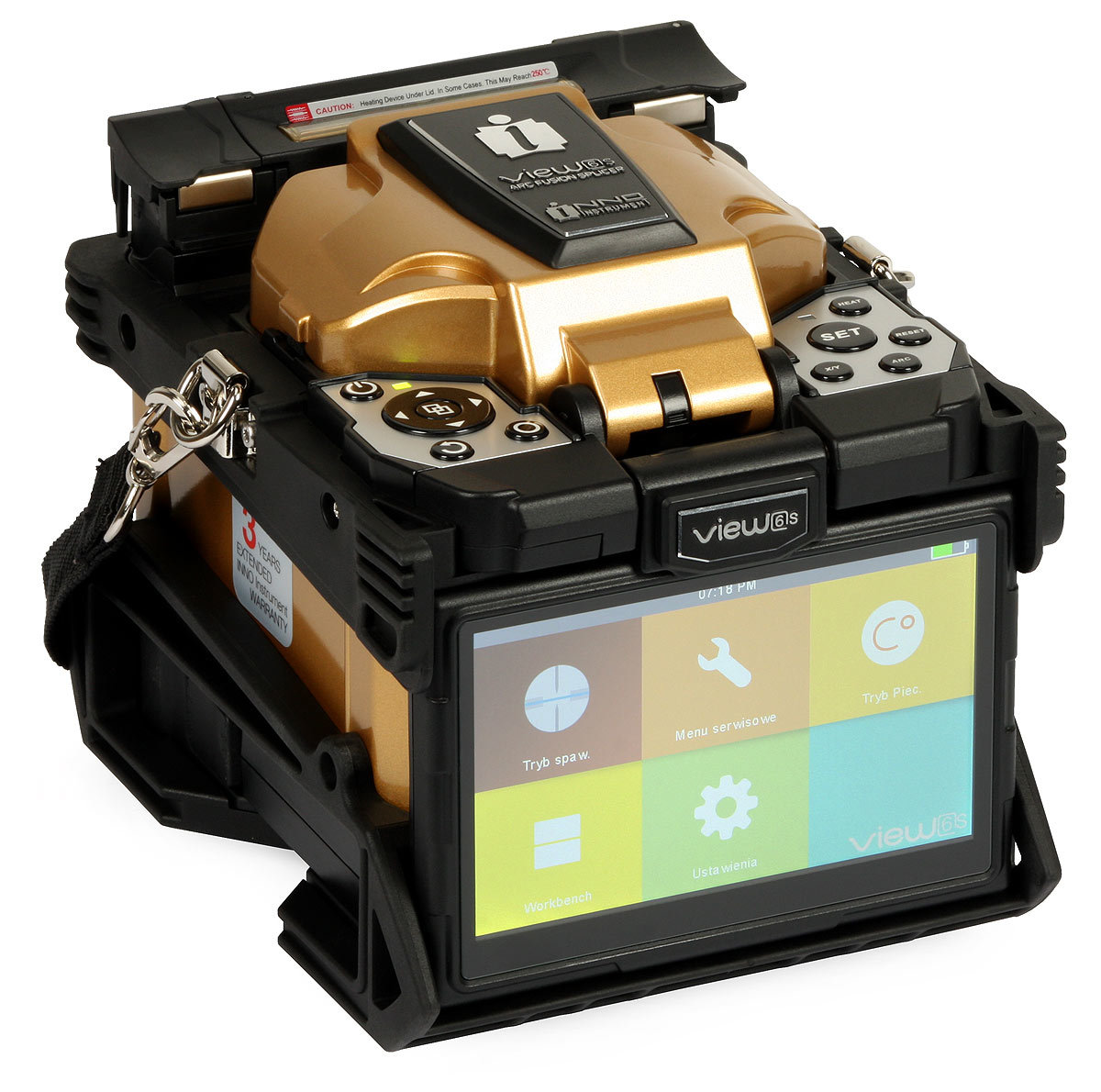

INNO INSTRUMENT FUSION SPLICER VIEW 6C

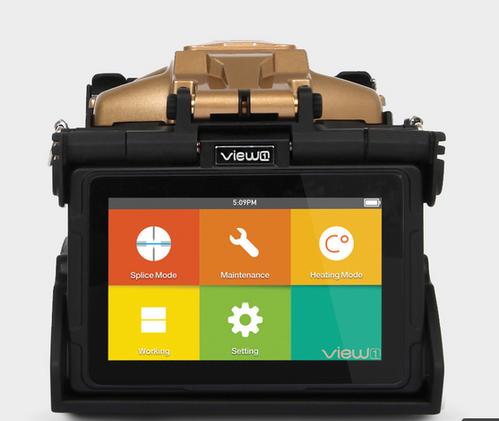

View 6C, an active clad-alignment splicer with the worlds highest fiber image magnification rate, is the exclusive fusion splicer presented only to main telecommunications operators. View 6Cs 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users.
  • Result Storage The last 2,000 splice records and last 2,000 splice result images
  • Terminal USB 2.0 /MINI USB
  • Compatible Fiber /
    Cable 0.25~3.0mm/Indoor Cable(with VFH-40)
  • Cleaved Length Diameter:0.125~1mm/Cleave Length:5~16mm
  • Cladding Diameter 80~150
  • Splicing Mode MAX128 modes
  • Heating Mode MAX32 modes
  • Typical Splice Loss SM: 0.03dB / MM: 0.02dB / DS: 0.05dB /
    NZDS: 0.05dB / G.657: 0.03dB(ITU-T Standard)
  • Return Loss >>60 dB
  • Estimated Splice Loss Available
  • Heating Sleeve Length 20~60mm
  • Tension Test 1.96~2.25N
  • Operating Condition Operating Altitude: 0~5000m above sea
    level, 0.95% relative humidity, -10~-50
    Max Wind 15m/s
  • Storage Condition 0~95% relative humidity, -40~80
  • Power Supply AC Input 100-240V, DC Input 9-14V
  • No. of Splice /
    Heating with Battery 4200mAh Battery Capacity,
    Typical 170 times (Splice+Heat)
  • Electrode Life 3500 arcs, can be extended
    by using an electrode grinder

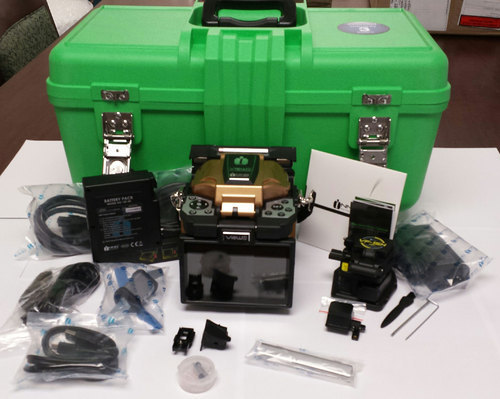

Note# This machine comes with additional battery

Warranty# 2 Year
